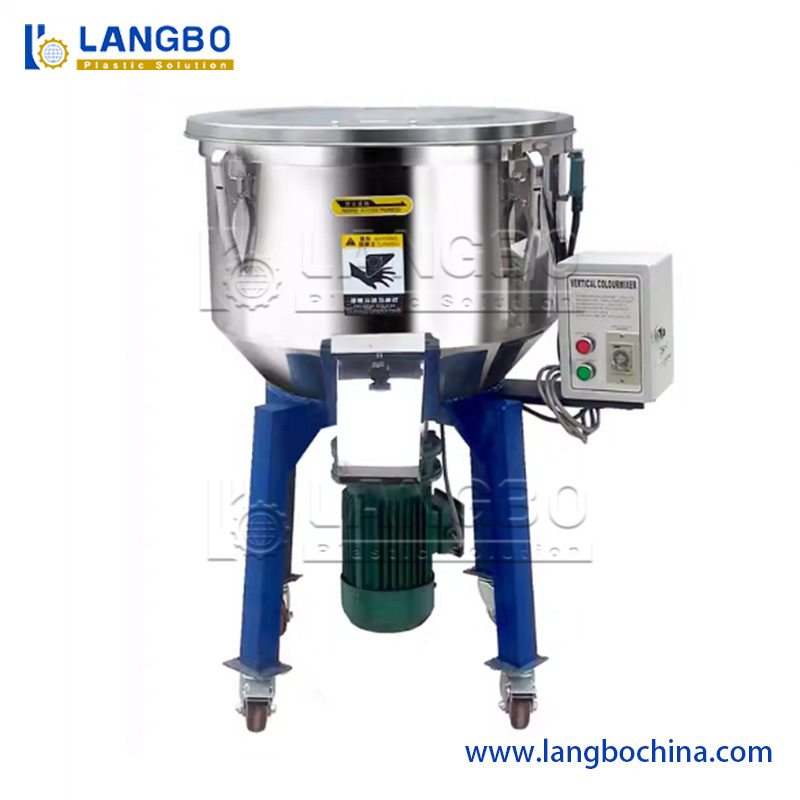

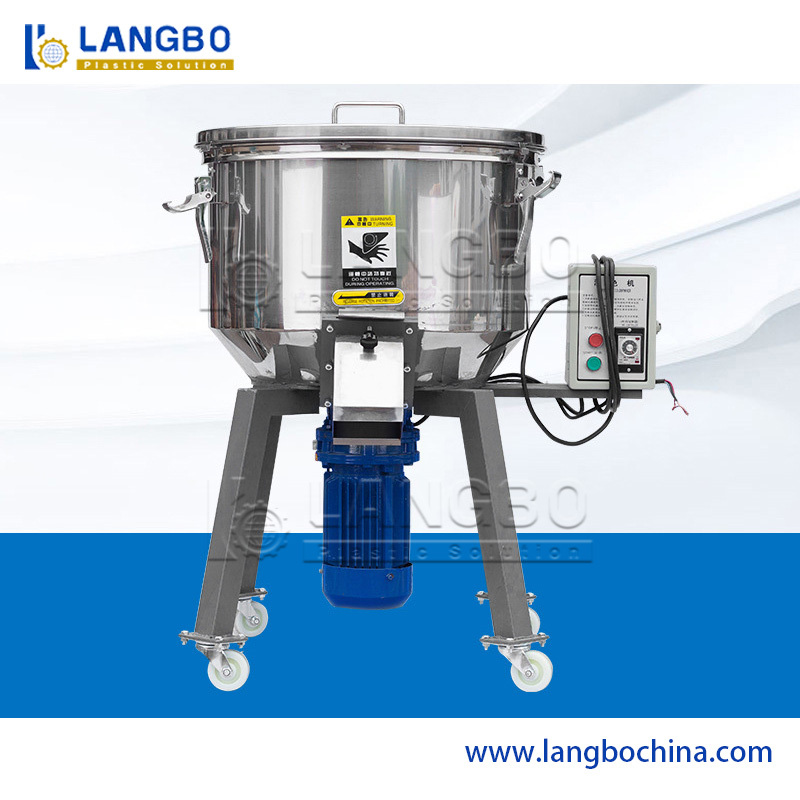

Industrial Vertical High Speed Colour Mixer for Plastic Granulation

1 ensemble
MOQ
USD, EUR
Prix
Industrial Vertical High Speed Colour Mixer for Plastic Granulation
traits Galerie Description de produit Évaluations et avis Demandez une citation
traits
Caractéristiques
Capacité de mélange: 50-200L
Type de lame de mélange: Pale d'hélice
Contrôle de vitesse: Vitesse variable
Mode de mélange: Entraînement moteur
Contrôleur: Micro-ordinateur
Type d'installation: Au sol
Onduleur: ABB
Plage de puissance: 1,5 ~ 13 m³/min
Taille de tamis: 10mm
Matériau approprié: Tuyau PVC/PE/PP
Informations de base
Lieu d'origine: ZHANGJIAGANG, JIANGSU
Nom de marque: LANGBO
Certification: CE, ISO
Numéro de modèle: LB-100
Conditions de paiement et expédition
Détails d'emballage: FORFAIT STANDARD
Délai de livraison: 60 jours ouvrables
Conditions de paiement: LC, T/T
Capacité d'approvisionnement: 1 ensemble
Description de produit
Plastic Industrial Mixer Color Mixing Machine
High-performance pellet mixer designed for uniform color distribution in plastic materials through efficient mixing technology.
Mixing Process Overview
The color mixing process begins with loading plastic resin and color masterbatch into the mixing chamber. High-speed rotating blades agitate the materials to ensure complete color distribution throughout the resin. Mixing duration is predetermined based on material type and desired color uniformity. The result is thoroughly blended material with consistent color and no streaks, ready for extrusion or molding processes.
Technical Specifications
Model (kg) 50 100 150 200
Voltage (v/hz) 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Power (kW) 1.5 3 4 5.5
Mixing Quantity (kg) 50 100 150 200
Speed (r/min) 63 63 63 63
Barrel Wall Thickness (mm) 1.5 1.5 2 2
Weight (kg) 90 126 163 228
Key Features & Components
Industrial Vertical High Speed Colour Mixer for Plastic Granulation 0
Mixing Barrel
Constructed from imported stainless steel with customizable brushed or mirror surface finishes. All material-contacting components are rust-resistant, durable, and easy to clean for optimal hygiene and longevity.
Industrial Vertical High Speed Colour Mixer for Plastic Granulation 1

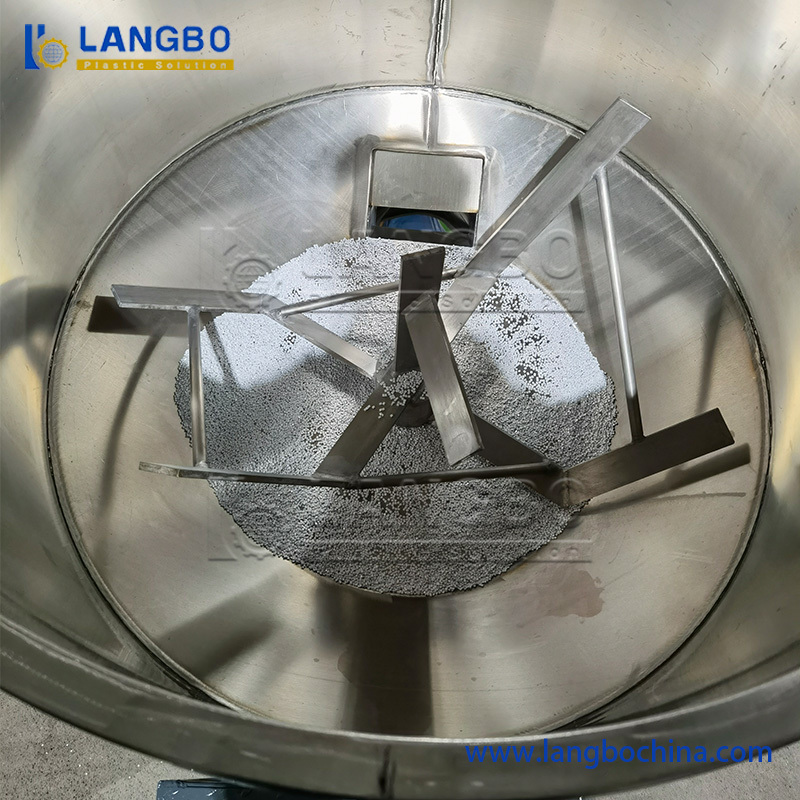

Spiral Paddle
Engineered to continuously lift and tumble materials within the barrel. This design ensures plastic resin and color masterbatch are evenly mixed with uniform color distribution and eliminates dead zones.
Industrial Vertical High Speed Colour Mixer for Plastic Granulation 2
Control System
Features a simple and reliable control interface for adjusting mixing time and operating speed. Stable electrical components ensure consistent mixing performance and user-friendly operation.
Industrial Vertical High Speed Colour Mixer for Plastic Granulation 3
Discharge Unit
Located at the barrel bottom for smooth and complete material release. Supports manual or pneumatic operation for convenient and efficient material handling.
Delivery & Payment Terms
  • Delivery: 30 days after order confirmation
  • Warranty: 12 months comprehensive coverage
  • Payment: T/T 30% advance, 70% balance before delivery
  • Packing: Standard export wooden case
Customer Support & Services
  • One-year guarantee for complete machine
  • 24/7 technical support availability
  • Overseas installation and commissioning by our engineers
  • Post-warranty maintenance guidance and competitively priced spare parts
  • Comprehensive operator training services
